NEO 300

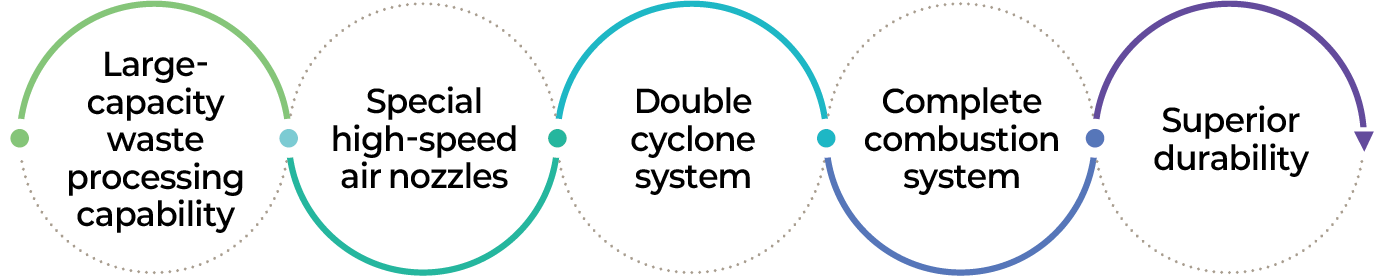

| KEY FEATURES

Large-capacity waste treatment Multifunctional pyrolysis

Preventing backflow by installing centrifugal dust collectors

Minimizes corrosion with heat-resistant and acid-resistant materials

  • This multifunctional pyrolysis facility is capable of processing large quantities of waste.
  • The special high-speed air nozzles inside the combustion chamber create combustion vortices that extend gas residence time and maximize combustion efficiency.
  • Two centrifugal dust collection units are installed to prevent backflow and double the collection efficiency.
  • The complete combustion of waste minimizes the generation of residual ash.
  • The burner in the secondary combustion chamber consistently maintains the optimal exhaust temperature and re-pyrolyzes unburned gases, improving the cleanliness of exhaust emissions.
  • The NEO-300 features a compact design and is built with materials offering excellent heat and acid resistance, ensuring outstanding durability and corrosion protection even in harsh environments.
| PYROLYSIS MATERIALS
 Rubber
 Resins
 Plastics
 Tires
 Fibers
 Wast papers and etc
PYROLYSIS DEVICE



Model
Capacity
(kg/hr)
Pyrolysis Device
Area over Fire
(㎡)
Burning Capacity
(㎥)
Cyclone
(∅xH)
Stack
Equip Area
(㎡)
Installation Area(㎡)
1st Chamber
(WxLxH)
2nd Chamber
(∅ xH)
H(ON on the groundxDiameter)
NEO-300
300
1300x3190x1770
950x1624
4.15
6.76
860x2876
(Double)
9776x560
15.2
35

※ The above specifications will be changed in depend on the basis of inspection.
